Correct bearing installation is important in major plants subject to arduous and continuous use in industries including food, beverage, primary processing, sugar, energy and more, explains hydraulic tensioning specialist Technofast.
These industries and more cannot afford downtime caused by 16 per cent of all bearing failures, which specifiers attribute to incorrect installation. Maintenance specialists say this is likely to be a big contributor to shorter service life and maintenance safety hazards.
Technofast founder and CEO John Bucknell said an obstacle to eliminating bearing setting problems in recent times has been restricted supply of proven, cost efficient bearing setting equipment, either because it is not available because of production lapses in the industrial gearing up following Covid, or because delivery has been delayed in stretched supply lines.
“Whatever the reason, the problems of overseas manufacturers have done us in Australia a favour. It means we are getting even broader local and international recognition for our promptly supplied and competitive local product, which is proven here and abroad,” said Bucknell.
In response to the opportunity, Technofast has boosted its capabilities to meet tight maintenance deadlines locally and globally, while also lowering the competitive cost of the wider range of bearing setters it is producing to meet demand for cost efficient proven product.
Technofast EziTite Bearing Setters can be manufactured to any size for precisely mounting or dismounting elements such as bearings, shaft couplings, ships’ propellers, and rudder pintles. The schematic (left) shows a typical EziTite Bearing Setter. At right is a custom-fabricated split type which is hydraulically actuated on a shaft of a bucket wheel reclaimer.
“When a new bearing is incorrectly mounted – be it by way of poor fitting, brute installation force, or incorrect tools – it can lead directly to premature and sometimes very swift bearing failure,” said Bucknell.
A poorly installed bearing is not only a pending production liability in terms of service life, but also in terms of expensive downtime and the OH&S factors involved in getting the worn part out again when it fails prematurely.
“Crude approaches may be quick, but they can be nasty and dangerous, risk damage to machinery shafts, and make subsequent bearing failure analysis either difficult or impossible,” said Bucknell.
Bearing sleeve withdrawal

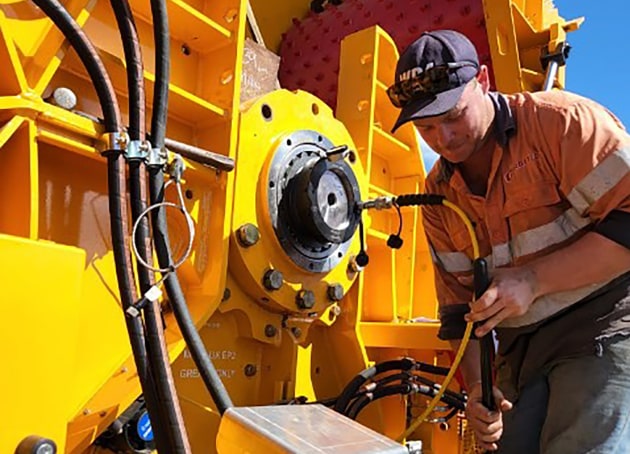

These same qualities of speed, precision and avoidance of downtime while ensuring worker safety were demonstrated in service with a bearing sleeve withdrawal operation when assembling a new mobile crusher and conveyor. It was being commissioned on-site to make road-base gravel for applications such as new highways and worksite infrastructure.
The newly imported machine – purpose-built to be assembled where needed for immediate service – required precision technology that was demonstrably superior to old methods such as using a hand-made jig laboriously fabricated for the purpose, with no way of determining if the process was accurate.
The EziTite Bearing Setter employed its high-pressure hydraulic oil feed (at 700 bar) to compactly, powerfully, and precisely to complete the process in a controlled and carefully governed process.
“Use of the EziTite Bearing Setter was simple, with the assembly screwed into place and energised with a pressure pump. The internal pressure generated acted upon the internal annular piston to press against bearing’s inner race, driving the sleeve,” said Bucknell.
Technofast’s EziTite hydraulic bearing setters are available in standard sizes, or they can be produced for custom applications in as little as two weeks, further reducing potential downtime, says Bucknell.
The principle of the EziTite Bearing Setter’s operation is similar in operation to the standard Technofast EziTite Hydraulic Nuts used globally – except the nuts don’t have the mechanical locking ring used on bearing installation tasks. On these, a standard locking nut and washer are set to maintain correct operating preload.
Technofast’s ranges of EziTite, EziJac and CamNut products are proven globally in mission-critical applications where speed, precision and avoidance of downtime are paramount. They are easy to fit and remove with little physical effort, optimising safety, and minimising downtime.
