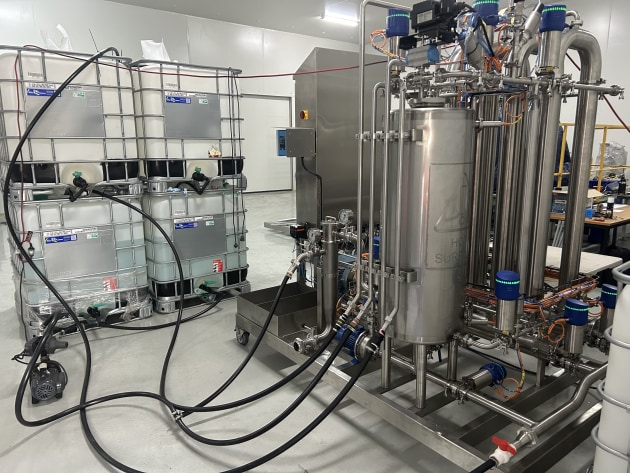

In developing a world-first, pure titanium, cross flow membrane solution, Australian industrial innovator, Products For Industry (PFi), turned to Rockwell Automation for the automation component.
PFi is a locally-owned and operated business servicing the industrial sector, offering a full suite of in-house capabilities to support manufacturers with machine automation products, systems and solutions, from concept through to production.
With more than 10 years of development, this fully evolved and tested product is now entering service in Australia with a leading beverages company, which will use the new technology to separate solids from liquid streams in various stages of the waste stream process.
PFi managing director, Gavin Dunwoodie says the solution is a game changer for the food and beverage industry.
“Particularly beverages and spirits, because titanium allows for a lower footprint, and longer times between Clean In Place (CIP), thereby reducing downtime,” he says.
“With traditional membranes made of ceramic or plastic, back-pulsing and cleaning often creates problems, so the overall lifetime of the equipment is reduced.”
Titanium (Ti) is the ninth most known metal in the earth’s crust and possesses the highest strength-to-weight ratio. It is as strong as steel, but weighs 45 per cent less, and is non-magnetic, non-corrosive, and does not conduct electricity.
“This forward-thinking beverages company wanted an advanced solution that would continue to increase their throughput, while lowering their environmental footprint. They were clear from the outset that there should be no compromises on quality,” Dunwoodie says.
Simple integration of automation hardware
“We needed automation hardware that was streamlined, repeatable, and easy to integrate, so we selected Rockwell Automation’s CompactLogix Control System and PanelView Plus Graphic Terminal.
“These provided us with a premium integration that would be accepted by global leaders like this beverages company,” says Dunwoodie.
An industrial automation and digital transformation company, Rockwell Automation is headquartered in the US and provides problem-solving services to more than 100 countries.
Its CompactLogix controllers provide higher performance, increased capacity, improved productivity, and enhanced security to help meet the growing demands of smart machines and equipment for manufacturing.
PanelView Plus provides the graphical interface through a seamless integration with the CompactLogix Controller. This integration enables engineers to enter configuration information once and use it for the entire automation design. It also helps build modern applications with high-speed HMI buttons for jogging applications, scalable vector graphics, and a pre-configured system banner that provides diagnostic information.
“Rockwell worked with us to select the best hardware for the job, made sure it was fit-for-purpose, and supported us along the way.
“Additionally, the customer specified that the coding style needed to be PAC-ML, an internationally recognised standard, so Rockwell set up its technologies to match this need,” Dunwoodie explains.
Rockwell Automation regional director, South Pacific, Anthony Wong, says, “We are delighted to be able to provide automation technology solutions, and ongoing support for PFi’s latest Australian innovation.
“PFi is a valued Gold OEM partner in our Partner Network, and we look forward to our continued collaboration to add value to customers.”
Australian innovation
To develop the titanium cross flow membrane solution, PFi built a new factory on its existing site in Queensland.
“We conducted extensive pilot tests at a wastewater treatment plant in New Zealand three years ago, where we found the titanium solution allowed very high flow and flux rates, easy and fast CIP, and no fouling or long-term issues with fats, oils, and greases.
“It also showed us that running costs and energy use would be reduced over the system’s lifetime, and the titanium membrane can be 100 per cent recycled at the end of its use in the solution,” Dunwoodie says.
“We also appreciate the support we received from the Australian Government, to help scale up and accelerate the success of this product, which has considerable local and export potential.”
Solution advantages
With titanium’s natural advantages as a material, its use in a cross flow membrane comes with several advantages, including:
- a continuous length of more than 1.3 metres;
- a larger range of apertures and filtration sizes are possible;
- all thicknesses below 400 Microns are possible, which PFi believes to be unique globally;
- higher levels of resistance to temperature, acidity, and pressure;
- industry-leading high flux rates and flow levels through the membrane;
- materials are non-perishable and recyclable;
- the tube density and surface area per housing is industry leading;
- it is back-pulsable, steam-cleanable, and chemical resistant. Ceramic membranes cannot be back-pulsed, and the cost is comparable to this new titanium alternative;
- longer times are possible between CIP, which reduces downtime; and
- lower footprint, lower energy consumption, and greater product life.
Scalability
Dunwoodie sees great potential for this solution globally, and is looking to scale up operations, after successful pilots, testing, and now in service with this beverages giant.
“Rockwell’s standard design will help with our solution’s market acceptance when we enter the export market. There is particularly strong potential in the spirit industry, where it can replace paper membranes to deliver better outcomes with reduced waste,” he says.
“Titanium provides a true closed loop solution, as the only 100 per cent recyclable membrane, even after 20 or more years in service, which is an outstanding benefit to an end-user’s ESG goals.”
